流线型高容量屋脊通风器(气楼)

简要描述:该通风器{气楼}安装在屋脊上。因热气流向上的原理,可根据厂房局部热量及局部排风需求的地方进行点式安装或大批量安装;喉口尺寸大,排风效果好,是高热、高污染自然换气排风的理想首选产品,可做采光型以增加室内的采光度,可做保温型,可加装防鸟网、防虫网,可做手动控制,可做消防联动电动(

  • 产品分类:气楼
  • 更新时间:2023-03-07 09:46:06
  • 访  问  量:0
详情介绍

        该通风器{气楼}安装在屋脊上。因热气流向上的原理,可根据厂房局部热量及局部排风需求的地方进行点式安装或大批量安装;喉口尺寸大,排风效果好,是高热、高污染自然换气排风的理想首选产品,可做采光型以增加室内的采光度,可做保温型,可加装防鸟网、防虫网,可做手动控制,可做消防联动电动(遥控}控制来调节排风量的大小及开启关闭排风作用,防腐要求高的厂房,挡雨板、外围板及端头板均可采用FRP防腐板生产安装。

The ventilator (air tower) is installed on the roof ridge. Due to the principle of upward flow direction of hot air, spot insallation or mass isalltion can be carried out according to the local heat and local exhaust demand of the plant; With large throat size and good ventilation effect. itis an ideal product of chaice for natural ventilation and ventflation with high heat and pllution. It can be used as a daylighting type to increase the indoor lighting. It can be used as a thermal insulation type. It can be equipped with bird screen and insect screen. It can be used as a manual control. It can be used as a firelinkage electric (remote) control to adjust the size of the exhaust air volume and open and dlose the exhaust function. It can also be used for plants with high anti corrosion requirements, rain shields The peripheral plate and end plate can be produced and installed with FRP antf- corrosion plate.

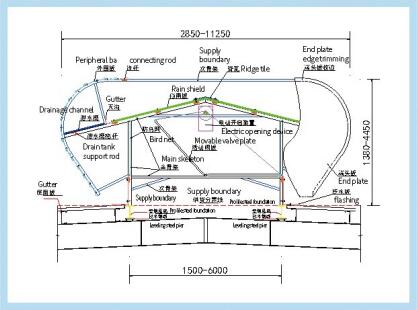

流线型高容量屋脊通风器(气楼)示意图

Schematic Diagram of Streamlined High Capacity Roofnentilator (Air Tower)

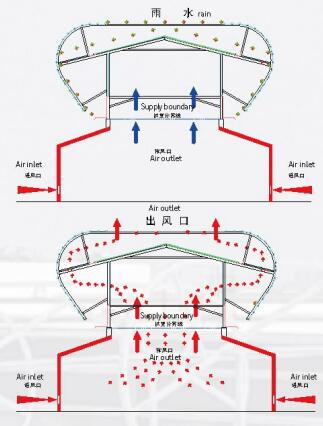

流线型高容量屋脊通风器(气楼)工作原理结构图

Structural Diagram of Working Princip le of Streamlined. High Capacity Roof Ventilator (Air Building)


启闭式流线型高容t屋脊通风署(气楼)

Open close streamlined high capacity ridge ventilator (air tower)


开敞式流线型高容t屋脊通风器(气楼)

Open strearmlined high capacity ridge ventilator (air tower)
