流线型高容量顺坡通风器（气楼）

通风器{气楼}安装在屋面顺坡方向上，可根据厂房的局部热量及局部排风需求的地方进行点式安装或大批量的安装，2000mm以下喉口气楼基础骨架可以直接做在檁条.上面，不需要增加基础钢，可做保温型，可做采光型以增加室内的采光度。可加装防鸟网、防虫网，可做手动控制，可做消防联动电动{遥控)控制来调节排风量的大小及开启关闭排风作用，防腐要求高的厂房，挡雨板、外围板及端头板均可采用FRP防腐板生产安装。

Ventilators (gas towers) are installel along the slope of the roof. Point type intalltion or mass isallation can be carried out according to the local heat and local exhaust demand of the plant. The foundation skeleton of the throat gas tower below 2000mm can be directy installeld on the purlins. It does not need to add foundation steel. It can be used as thermal insulation type, and it can be used as dayighting type to increase indoor daylighting. Bird screen, insect screen, manual control and fire linkage electric (remote control) control can be added to adjust the air exhaust volume and open and close the air exhaust function. FRP anti- corrosion plates can be used for production and insallation of rain shields, peripheral plates and end plates in plants with high anti- corrosion requirements.

流线型高容量顺坡通风器(气楼)示意图

Schematic diagam of strea mlined high-capacity slope ventilator (gas tower)

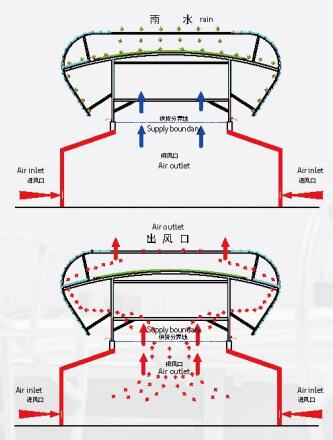

流线型高容量顺坡通风器(气楼)工作原理结构图

Working principle structure diagram of streamlined high-capacity slope ventilator (gas tower)

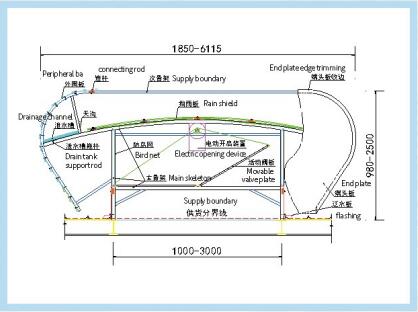

启闭式流线型高容量顺坡通风器(气楼)

Open close streamlined high-capacity slope ventilator (air tower)

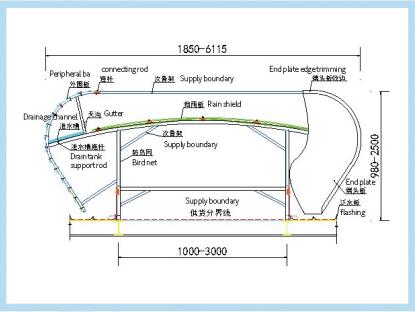

开敞式流线型高容量顺坡通风器(气楼)

Open strearmlined high-ca pacity slope ventilator (gas tower)
